Blow your bottle, Shape your dream

|
| Place of Origin: | Jiangsu, China |
| Brand Name: | Eceng |
| Certification: | CE ISO |
| Model Number: | H2 |
| Minimum Order Quantity: | 1set |
|---|---|
| Packaging Details: | To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine |
| Delivery Time: | 30days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 200 Set/Sets per Year |
| Plastic Processed: | PET | Warranty Of Core Components: | 1 Year |
|---|---|---|---|
| Condition: | New | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | 2.25mx1.6mx1.7m | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Food & Beverage Factory | Theory Output: | 2200BPH |
| Highlight: | Beverage PET Bottle Blowing Molding Machine,PET Bottle Blowing Machine 2200BPH,380V Bottle Blowing Molding Machine |
||

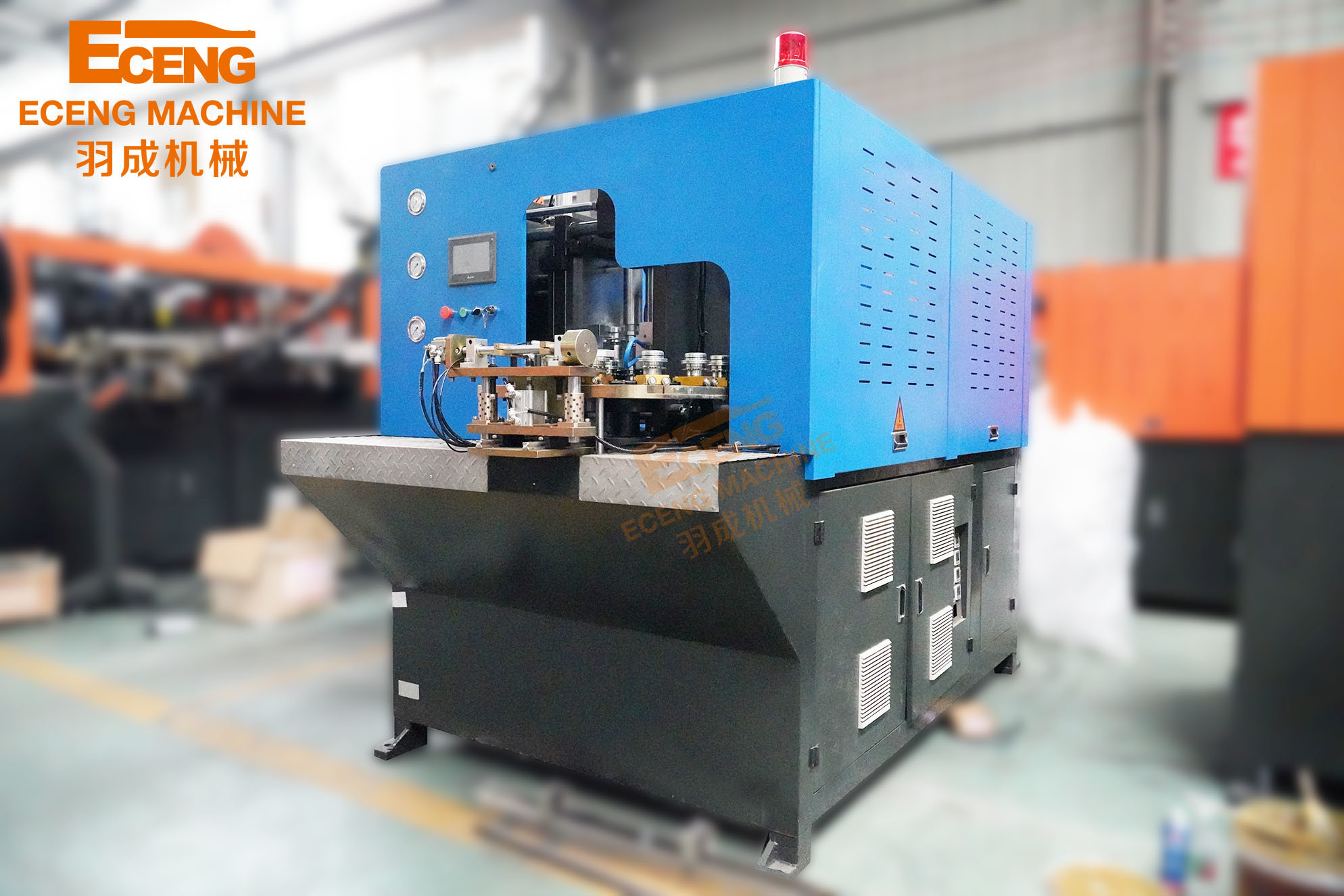

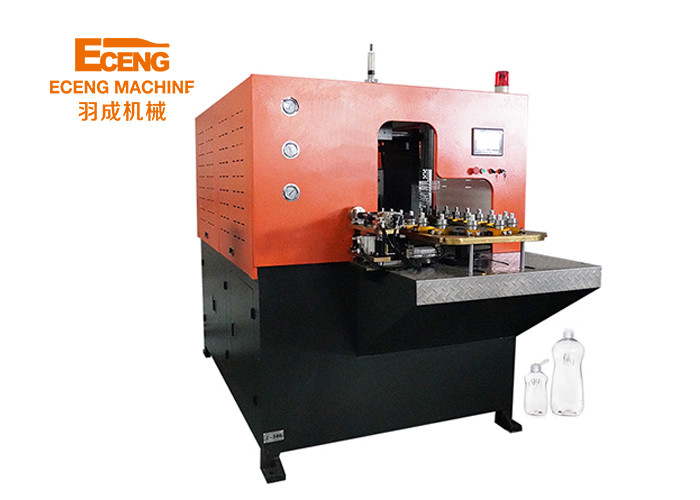

Eceng Hand Feeding Pet Bottle Blowing Machine H2 2 Cavity 2200BPH 380V/50HZ
If you're in the business of producing cosmetic bottles, you understand the importance of having an efficient, reliable machine to create your product. That's where the 2 Cavity 2200BPH Hand Feeding Pet Bottle Blowing Machine comes in. This machine is specifically designed to create cosmetic bottles at a high capacity and with precision accuracy.
With two cavities and a production rate of 2200BPH (bottles per hour), this machine is perfect for smaller businesses looking to scale up their production. It's also great for larger businesses looking for an additional machine to support their existing production line.
| Item | H2 | |
| Bottle type specification | Cavity | 2 |
| Theory output | 2200 | |
| Max.volume | 2L | |
| Bottle mouth maximum overall DIdiameter | 80mm | |
| Bottle biggest diameter | 100mm | |
| Bottle maximum height | 330mm | |
| Power specifications | Light tube quantity | 32pcs |
| Light tube power | 0.75KW | |
| Maximum heating power | 24KW | |
| All electric machine installation | 26KW | |
| Actual consumption | 20KW | |
| Air pressure specification | Work pressure | 7-9kg/cm2 |
| Low-pressure gas consumption | 1000L/min | |
| Blow bottle pressure | 25-35kg/cm2 | |
| Higher -pressure gas consumption | 1500Ltr/min | |
| Forzen water specification | Work pressure | 5-6 kg/cm2 |
| Temperature range | 10℃ | |
| Consumption | 5000kcal/hr | |
| Forzen water flow | 30L/min | |
| Machine specification | Size of the machine | 2.25x1.6x1.7 |
| Weight of the machine | 2.5ton | |
Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.
Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.
Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.
Q:Your company is a trading company or a direct factory?
A:We are a direct factory which locates in Zhangjiagang city.
Q:All of your products are made by yourself or compacted via purchasing the others?
A:We have independent technical team who focus on making machines,all the products are made by our technical team.
Q:What is the ability of your factory?
A:About 80 lines per year.
Q:Do you have any other services about your products?
A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.
Q:How do you make the quotation for clients?
A:The price depends on quality and performance but the clients should be satisfied first.
