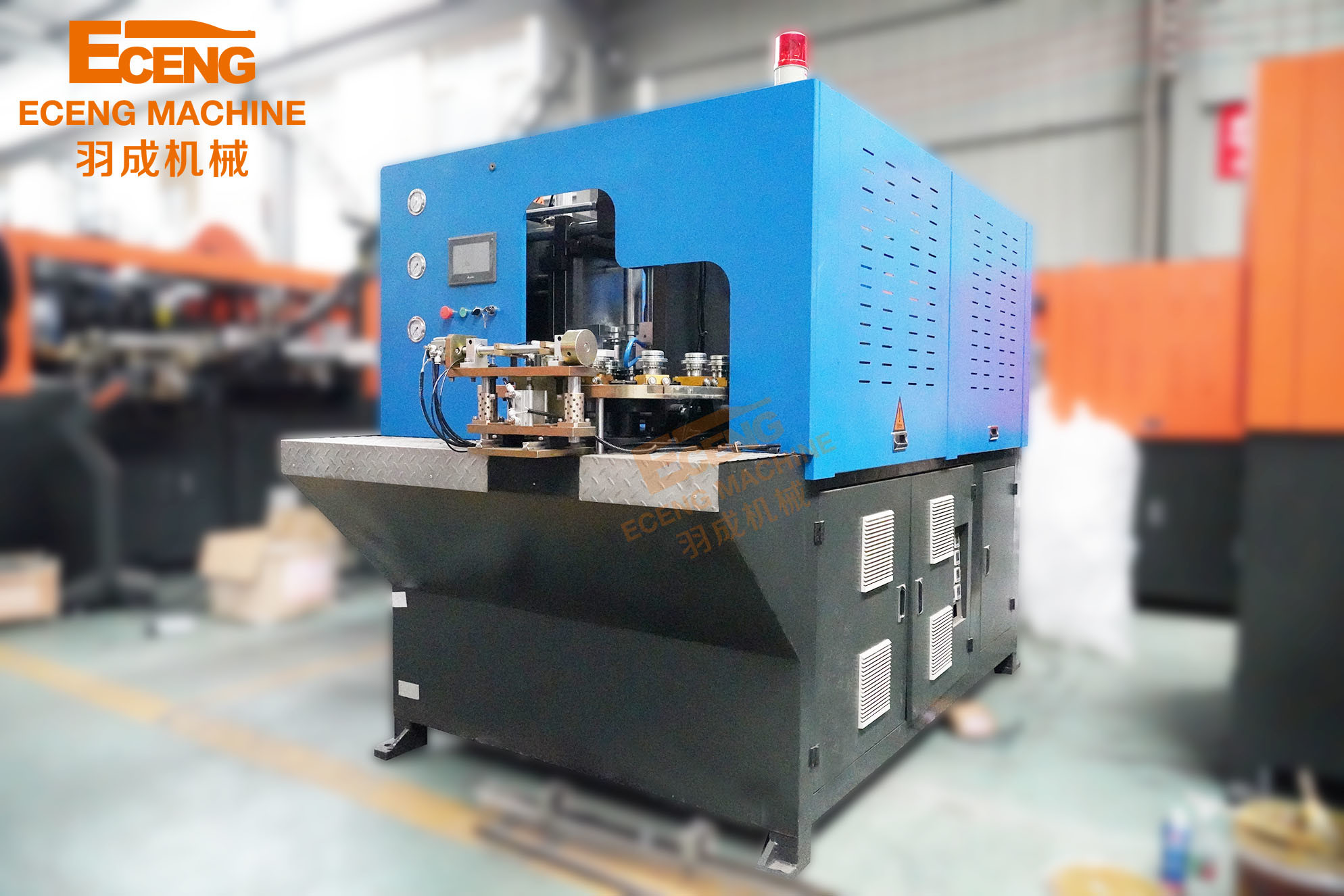

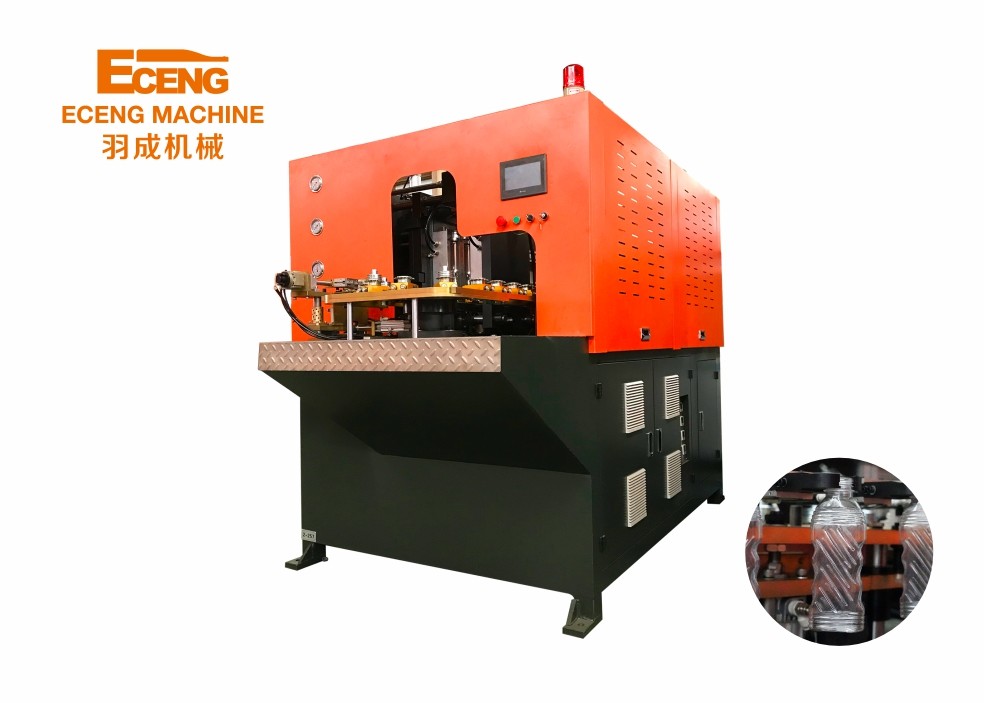

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding
2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding
2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: H2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Packaging Details: To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Warranty Of Core Components: 1 Year
Condition: New Voltage: 380V/50HZ
Dimension(L*W*H): 2.25mx1.6mx1.7m Key Selling Points: Easy To Operate
Applicable Industries: Food & Beverage Factory Theory Output: 2200BPH
High Light:

2 Cavity Bottle Blow Molding Machine

,

Manual Hand Feeding Bottle Blowing Machine

,

2200BPH Feeding Bottle Blowing Machine

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 0

Are you in need of a reliable and versatile solution for your chemical bottle production? Look no further! Our state-of-the-art 2200BPH 2 Cavity Chemical Bottle Blow Molding Machine is here to meet your needs with unmatched efficiency and flexibility.

With a production capacity of 2200 bottles per hour, this machine is designed to optimize your production process. Say goodbye to time-consuming and labor-intensive tasks. Our machine ensures a seamless and efficient workflow, maximizing your output and minimizing downtime.

Featuring a 2 cavity design, our machine offers unparalleled flexibility. Whether you're producing small or large chemical bottles, our machine can adapt to your specific requirements. Each cavity is carefully constructed to ensure precise and consistent bottle production, leaving no room for compromise.

Our machine is designed for manual hand feeding, allowing for easy operation and quick changeovers. Say goodbye to complicated feeding systems and hello to hassle-free production.



2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 1

Item H2
Bottle type specification Cavity 2
Theory output 2200
Max.volume 2L
Bottle mouth maximum overall DIdiameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Light tube power 0.75KW
Maximum heating power 24KW
All electric machine installation 26KW
Actual consumption 20KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton

H series bottle blowing machine is a professional equipment designed for cosmetic bottles, daily-chemical bottles,special-shaped bottles,small-quantity conventional bottles,which is simple to operate and has a wide range of applications.It is suitable for various diameter of PET bottles for various purposes.H series bottle blowing machine is not equipped with auto-loader.It is by manual.It is stable and reliable,with low cost,safe and practical alternative to traditional semi-automatic equipment.

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 2

H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features: 1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system. 2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs. 4. manual and automatic methods of operation, human-machine interface control, simple operation. 5. servo transmission system, high positioning accuracy, fast speed stability and good reliability. 6. less than 0.2% scrap rate for finished bottle .

Fully Automatic Water Beverages Bottle Blowing Machine K8 8 Cavitys 16

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 4

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 5

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 6

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 7



2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 8

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 9

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.
2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 102 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 11

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 12
2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 13

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 14

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 15

2 Cavity Chemical Bottle Blowing Machine 2200BPH Output Manual Hand Feeding 16

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
