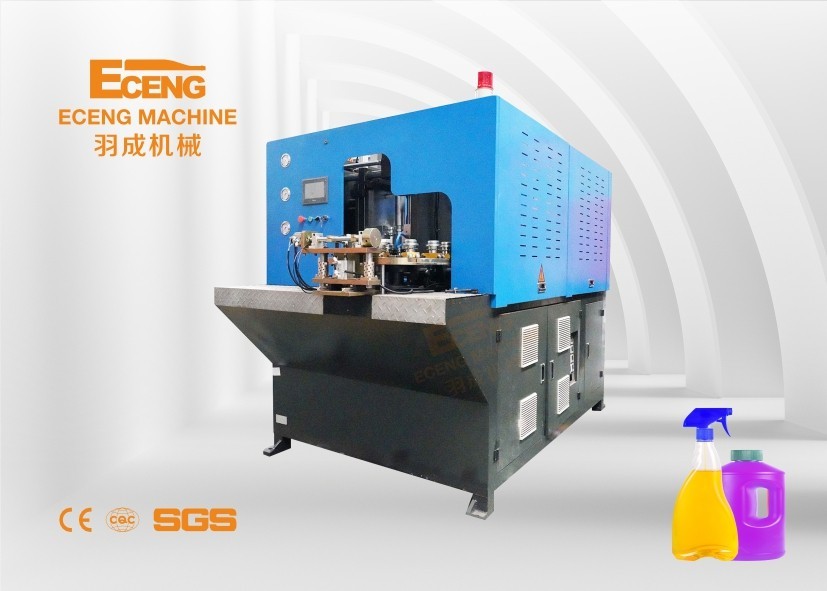

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding
2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding
2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding
Product Details:
Place of Origin: Jiangsu, China
Brand Name: Eceng
Certification: CE ISO
Model Number: H2
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $14,500.00 - $21,000.00/Sets
Packaging Details: To be packed in strong new wooden cases,suitable for long distance ocean for H2 pet water bottle blow molding machine
Delivery Time: 30days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Set/Sets per Year
Contact Now
Detailed Product Description
Plastic Processed: PET Warranty Of Core Components: 1 Year
Condition: New Voltage: 380V/50HZ
Dimension(L*W*H): 2.25mx1.6mx1.7m Key Selling Points: Easy To Operate
Applicable Industries: Food & Beverage Factory Theory Output: 2200BPH
High Light:

2200bph plastic water bottle blowing machine

,

2ltr plastic water bottle blowing machine

,

2ltr pet water bottle making machine

Eceng Hand Feeding Pet Bottle Blowing Machine H2 2 Cavity 2200BPH 380V/50HZ

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 0

The versatile solution for your bottle production needs. With a wide range of compatibility, this machine is designed to handle various PET packaging bottles up to 2L in size.

Eceng H2 Manual Feeding Bottle Blowing Machine offers flexibility and convenience. Its adaptable design allows for bottle mouth diameters ranging from 28mm to 80mm, ensuring it can accommodate a wide array of bottle types. Additionally, it can handle bottles with a maximum diameter of 100mm and a maximum height of 330mm.

Whether you are producing water bottles, juice bottles, or other PET packaging containers, the H2 Manual Feeding Bottle Blowing Machine is your reliable and efficient choice. Its user-friendly interface and robust construction make it suitable for both small-scale and large-scale production.Experience the versatility and superior performance of the H2 Manual Feeding Bottle Blowing Machine and take your bottle production to new heights.

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 1

Item H2
Bottle type specification Cavity 2
Theory output 2200
Max.volume 2L
Bottle mouth maximum overall DIdiameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Power specifications Light tube quantity 32pcs
Light tube power 0.75KW
Maximum heating power 24KW
All electric machine installation 26KW
Actual consumption 20KW
Air pressure specification Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Forzen water specification Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min
Machine specification Size of the machine 2.25x1.6x1.7
Weight of the machine 2.5ton
H linear bottle blowing machine adopts advanced microcomputer PLC control system, stable performance,manual type and fully automatic type. H series linear bottle blowing machine features:
1.stable and accurate running at high speed,adopt more stable and advanced microcomputer PLC control system.
2. production process is fully automated, with the advantages of low investment, high efficiency, easy operation, simple maintenance and safety. 3. suitable for flexible production of quantity and various bottle shape,wide range of applications,meet customer needs.
4. manual and automatic methods of operation, human-machine interface control, simple operation.
5. servo transmission system, high positioning accuracy, fast speed stability and good reliability.
6. less than 0.2% scrap rate for finished bottle .

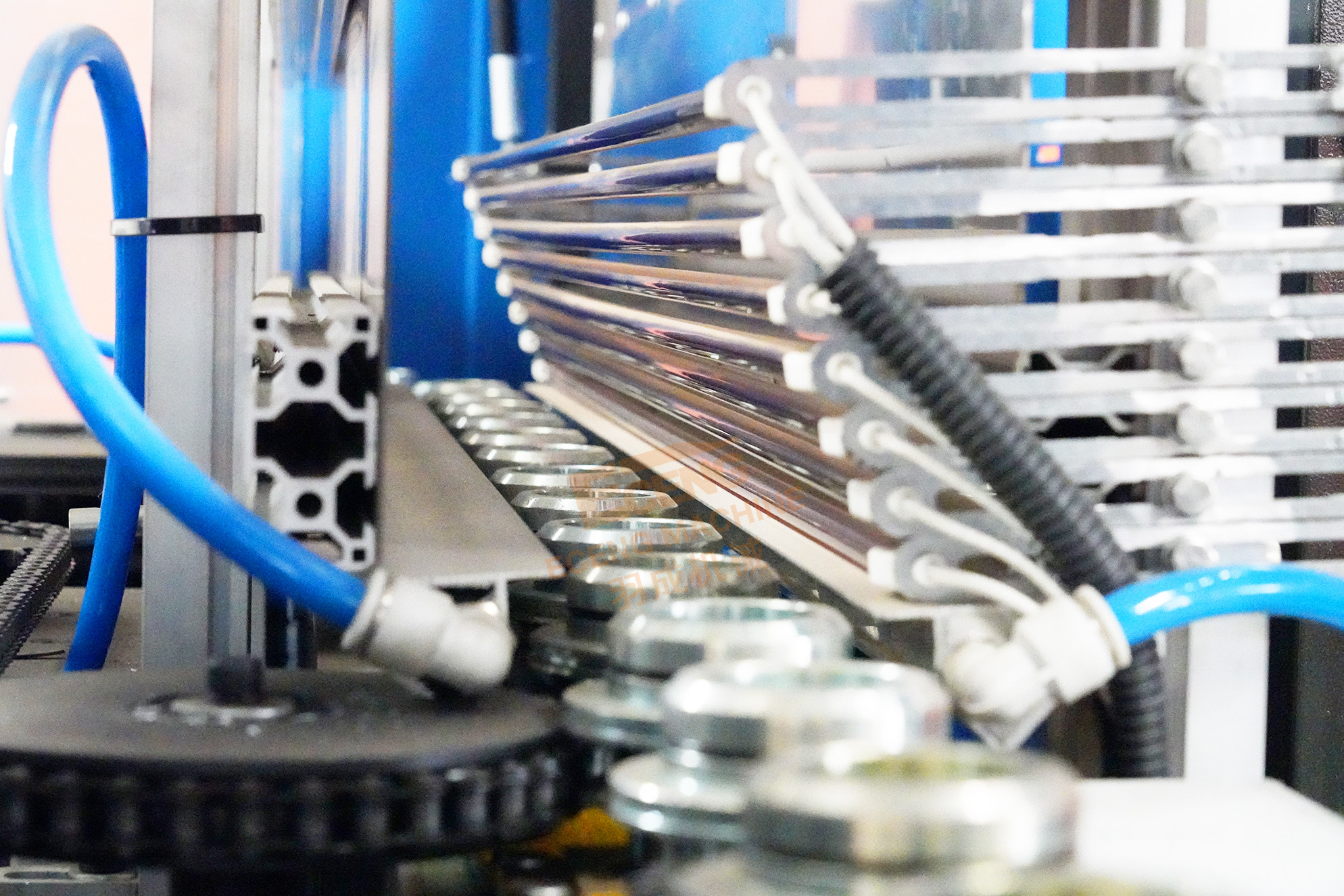

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 2

Our company, Zhangjiagang Eceng Machinery Co., Ltd. we are a special manufacturer of PET bottle blowing machine,blow molding machine and mould, We have been engaged in moulds for years, and have gained a well-known reputation from our customers who spread all over the world.

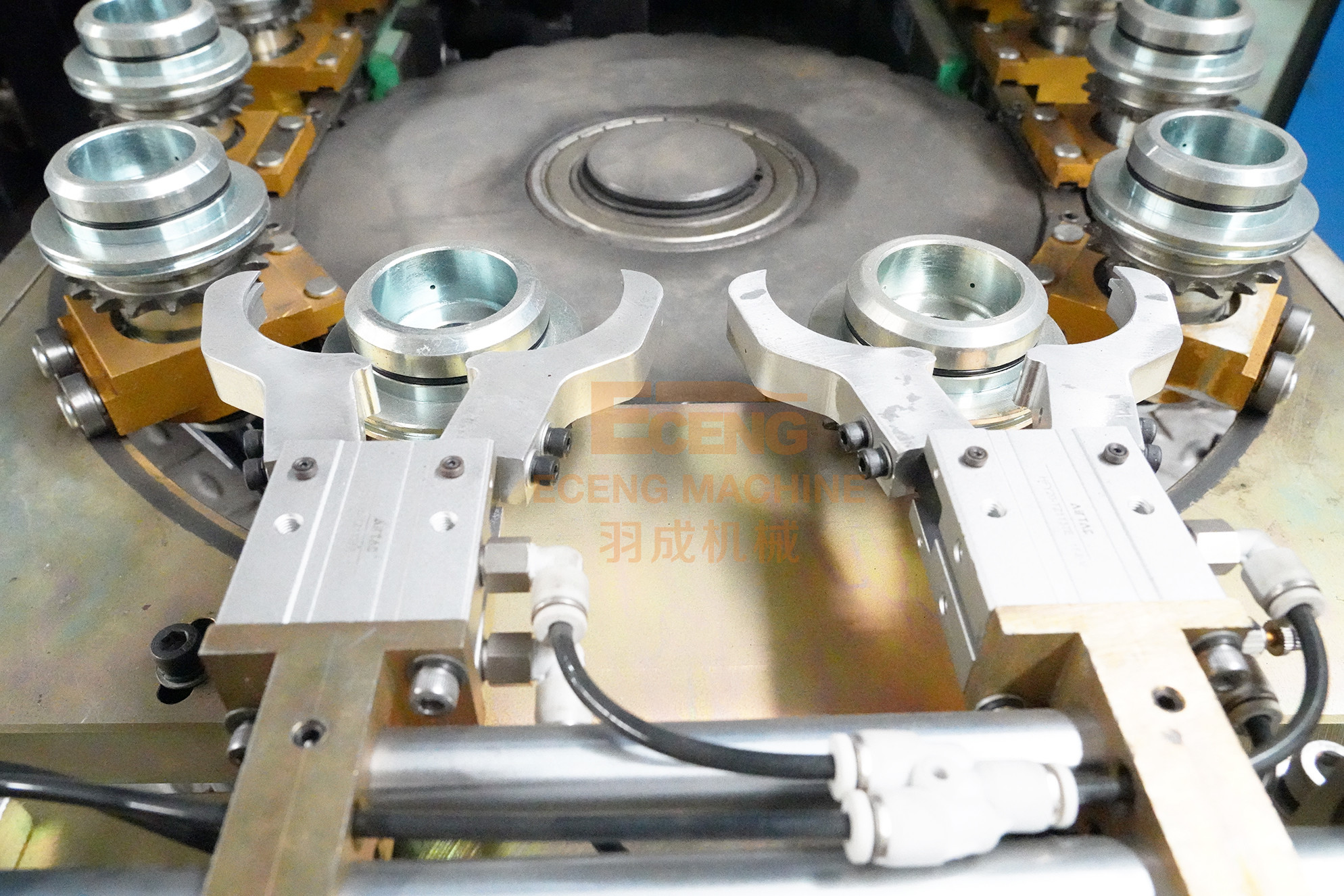

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 3

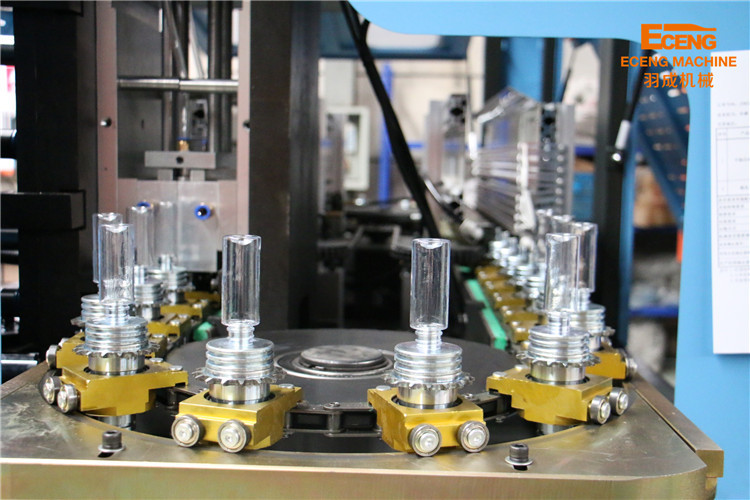

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 4

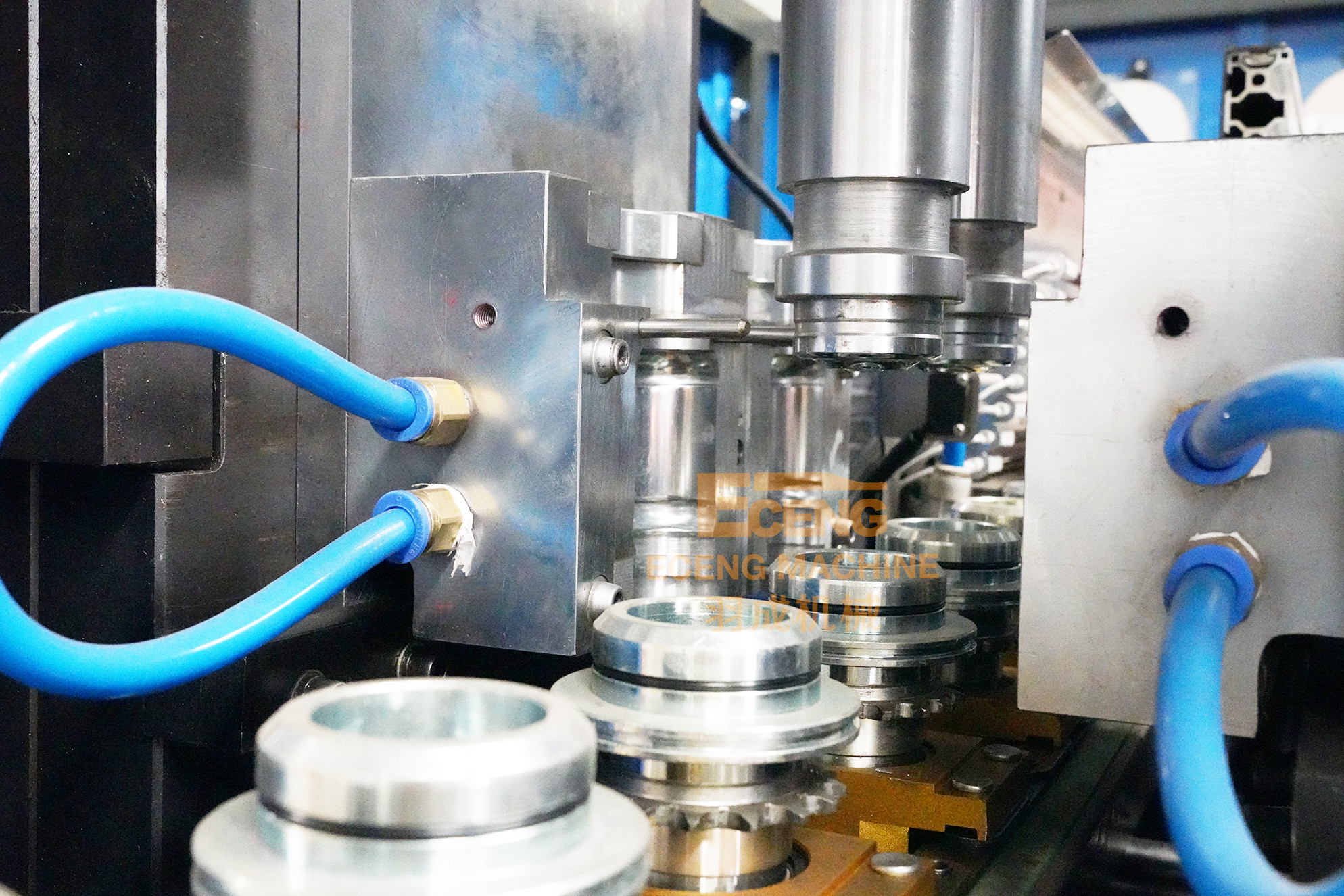

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 5

Zhangjiagang Eceng Machinery Co., Ltd is founded in 2007,We manufacture fully-automatic PET bottle blowing machine, injection mold,blowing mold etc.,suitable for 5ml-50L plastic bottles,water bottles,carbonated beverage bottles,oil bottles,cosmetics bottles.We can equip machine from 1-12 cavity,output from hundreds bottles to 36,000 bottles/hour,also provide full set of production system from preform production,bottle blowing,filling to final packaging.
So far Eceng machinery have provided more than 2050 sets machines for more than 170 countries in the world.Our equipments are highly estimated by the clients, and are well known at home and abroad.We sincerely hope to establish business relationship with friends all over the world.

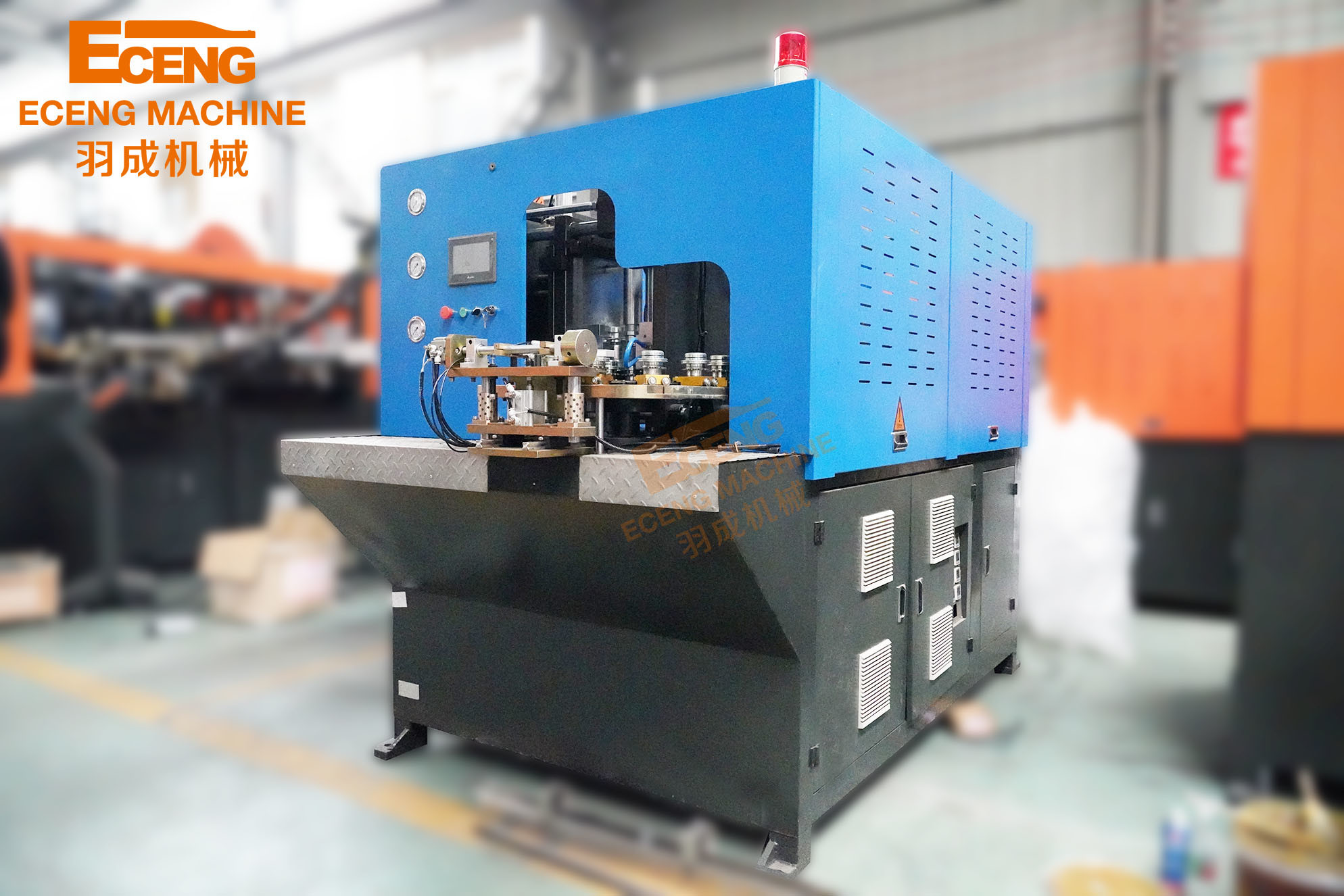

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 6

our advantage:1. Resonable price;2. Good after service;3. experienced skilled workers and professional engineers;4. Good quality ,excellent service ,long life mould;5. on time delivery time;6.our engineers can be online for 24 hours to serve you.



2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 7
2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 8

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 9

Normally the inner package, we will packed by the stretch film. Outer package we will use the export woodencase. Mostly we deliver the goods by sea as the freight is most reasonable in this way.

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 10

2 Liter PET Plastic Water Bottle Blowing Machine Automatic Hand Feeding 11

FAQ

Q:Your company is a trading company or a direct factory?

A:We are a direct factory which locates in Zhangjiagang city.

Q:All of your products are made by yourself or compacted via purchasing the others?

A:We have independent technical team who focus on making machines,all the products are made by our technical team.

Q:What is the ability of your factory?

A:About 80 lines per year.

Q:Do you have any other services about your products?

A:We have a lot of experience on making projects and specifications for our clients,also we have a fixed service system.

Q:How do you make the quotation for clients?

A:The price depends on quality and performance but the clients should be satisfied first.
